Vibrating Screen Bearings
Bearings for mining screens, quarry screens, dewatering screens and high vibration equipment. C3/C4 radial internal clearance, heat-stabilized for high frequency operation.
Key Features for Vibrating Screen Applications
C3 / C4 Radial Internal Clearance
Extra internal clearance accommodates thermal expansion from high-frequency vibration and interference fits on the shaft. C4 is standard for vibrating screen applications; C3 for lighter duty.
Heat Stabilization (S0 / S1)
S1 heat-stabilized bearings withstand operating temperatures up to 200°C. S0 up to 150°C. Critical for vibrating screens where friction generates heat during continuous high-frequency operation.
W33 Oil Groove & Lubrication Holes
Outer ring lubrication groove and 3 oil holes allow re-greasing without disassembly. Essential for vibrating screens where regular lubrication is critical to bearing life.
Brass Cage (CA) for High Speed
Machined brass cage (CA) provides better guidance at high speed, better heat dissipation, and higher load capacity compared to steel cage. Standard recommendation for vibrating screen exciters.
Vibrating Screen Bearing Specifications
| Model | Size | Clearance | Heat Stab. | Application | MOQ | Price |
|---|---|---|---|---|---|---|
| 22310CA/C4W33 | 50x110x40 mm | C4 | S1 (200°C) | Small vibrating screen exciter, dewatering screen | 5 pcs | Get Latest Price → |
| 22312CA/C4W33 | 60x130x46 mm | C4 | S1 (200°C) | Medium vibrating screen, quarry screen | 5 pcs | Get Latest Price → |
| 22314CA/C4W33 | 70x150x51 mm | C4 | S1 (200°C) | Mining vibrating screen, aggregate screen | 5 pcs | Get Latest Price → |
| 22316CA/C4W33 | 80x170x58 mm | C4 | S1 (200°C) | Large vibrating screen, coal screening | 2 pcs | Get Latest Price → |
| 22318CA/C4W33 | 90x190x64 mm | C4 | S1 (200°C) | Heavy mining screen, scalping screen | 2 pcs | Get Latest Price → |
| 23936CC/C3W33 | 180x250x52 mm | C3 | S1 (200°C) | Large dewatering screen, sand screening | 2 pcs | Get Latest Price → |
| 23940CC/C3W33 | 200x280x60 mm | C3 | S1 (200°C) | Extra large vibrating screen, mining screen | 1 pcs | Get Latest Price → |
| 22212CA/C4W33 | 60x110x28 mm | C4 | S1 (200°C) | Small vibration equipment, feeder | 5 pcs | Get Latest Price → |
| 22214CA/C3W33 | 70x125x31 mm | C3 | S0 (150°C) | Light vibrating screen, sand screen | 5 pcs | Get Latest Price → |
| 22216CA/C3W33 | 80x140x33 mm | C3 | S0 (150°C) | Medium vibrating equipment, aggregate | 5 pcs | Get Latest Price → |
| 23318CA/C4W33 | 90x190x73 mm | C4 | S1 (200°C) | High capacity vibrating screen exciter | 2 pcs | Get Latest Price → |
| 24024CA/C3W33 | 120x180x60 mm | C3 | S0 (150°C) | Vibrating screen drive shaft support | 2 pcs | Get Latest Price → |
Size: 50x110x40 mm
Clearance: C4 | Heat: S1 (200°C)
Application: Small vibrating screen exciter, dewatering screen
MOQ: 5 pcs
Size: 60x130x46 mm
Clearance: C4 | Heat: S1 (200°C)
Application: Medium vibrating screen, quarry screen
MOQ: 5 pcs
Size: 70x150x51 mm
Clearance: C4 | Heat: S1 (200°C)
Application: Mining vibrating screen, aggregate screen
MOQ: 5 pcs
Size: 80x170x58 mm
Clearance: C4 | Heat: S1 (200°C)
Application: Large vibrating screen, coal screening
MOQ: 2 pcs
Size: 90x190x64 mm
Clearance: C4 | Heat: S1 (200°C)
Application: Heavy mining screen, scalping screen
MOQ: 2 pcs
Size: 180x250x52 mm
Clearance: C3 | Heat: S1 (200°C)
Application: Large dewatering screen, sand screening
MOQ: 2 pcs
Size: 200x280x60 mm
Clearance: C3 | Heat: S1 (200°C)
Application: Extra large vibrating screen, mining screen
MOQ: 1 pcs
Size: 60x110x28 mm
Clearance: C4 | Heat: S1 (200°C)
Application: Small vibration equipment, feeder
MOQ: 5 pcs
Size: 70x125x31 mm
Clearance: C3 | Heat: S0 (150°C)
Application: Light vibrating screen, sand screen
MOQ: 5 pcs
Size: 80x140x33 mm
Clearance: C3 | Heat: S0 (150°C)
Application: Medium vibrating equipment, aggregate
MOQ: 5 pcs
Size: 90x190x73 mm
Clearance: C4 | Heat: S1 (200°C)
Application: High capacity vibrating screen exciter
MOQ: 2 pcs
Size: 120x180x60 mm
Clearance: C3 | Heat: S0 (150°C)
Application: Vibrating screen drive shaft support
MOQ: 2 pcs
* Get Latest Price: MOQ depends on model, packing and current stock.
Screen Applications
Our vibrating screen bearings are used across mining, quarry, sand, coal and aggregate processing industries. We supply bearings for circular motion, linear motion and elliptical motion vibrating screens.
• Mining vibrating screen (primary classification)
• Quarry screen (aggregate sizing)
• Dewatering screen (sand, coal, minerals)
• Sand screening and washing plant
• Aggregate screening (crushed stone, gravel)
• Coal screening and preparation plant
Packing & MOQ
Packing Options
- • VCI anti-rust paper wrapping
- • Vacuum sealed plastic bag
- • Individual carton box per bearing
- • Fumigation-free wooden case for large/heavy sizes
- • Export pallet with moisture barrier and stretch wrap
MOQ
- • Small bore (50-80mm): 5 pcs
- • Medium bore (80-150mm): 2-5 pcs
- • Large bore (150mm+): 1-2 pcs
- • Mixed models accepted
- • Sample order supported for first-time buyers
Quality
Material & Precision
- • Chrome steel GCr15 (SAE 52100 equivalent)
- • Heat-stabilized for up to 200°C (S1)
- • C3, C4 radial internal clearance
- • P0, P6 precision grades
Quality Control
- • 100% dimensional and clearance inspection

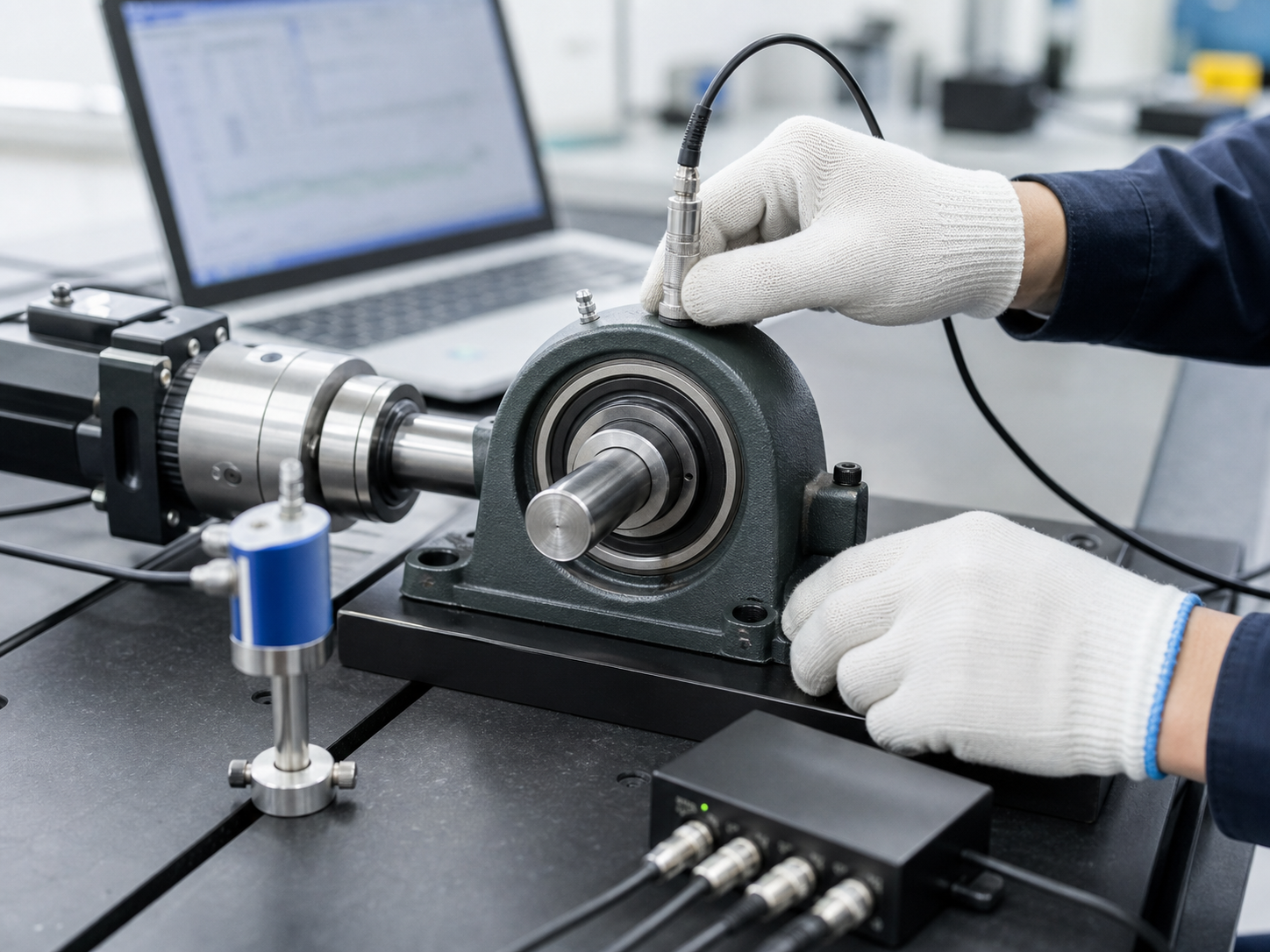

- • Vibration and noise level testing
- • SGS/BV third-party inspection on request
- • ISO 9001 certified supply chain
Frequently Asked Questions
What clearance should I use for vibrating screen bearings?▾
C4 radial internal clearance is the standard for vibrating screen applications. C4 provides extra room for thermal expansion caused by high-frequency vibration and the tight interference fit on the shaft. For lighter-duty screens or lower vibration frequencies, C3 may be sufficient. Always check your screen manufacturer's specification.
Why are heat-stabilized bearings important for vibrating screens?▾
Vibrating screens operate at high frequencies (typically 750-1200 RPM for exciters), generating significant heat through friction. Heat-stabilized bearings (S1 rating up to 200°C) maintain their dimensional stability and hardness at elevated temperatures, preventing premature failure from thermal expansion and softening.
How often should I re-grease vibrating screen bearings?▾
Re-greasing interval depends on operating speed, load, temperature, and contamination level. For typical mining vibrating screens, we recommend re-greasing every 200-500 operating hours through the W33 oil groove. Use a high-quality lithium-complex grease with EP additives. Avoid over-greasing, which can cause overheating.
Can you match bearings from my screen manufacturer's specification?▾
Yes, send us your vibrating screen make, model and bearing part number. We will cross-reference to the correct spherical roller bearing with the required clearance (C3/C4), heat stabilization, and W33 oil groove. We supply bearings for most major screen brands including Metso, Sandvik, Schenck, Derrick and others.
Send Your Vibrating Screen Bearing Inquiry
Send us your screen model, bearing part number, quantity and destination. We will reply with the correct specifications (C3/C4 clearance, heat stabilization), MOQ and the latest bulk price.
